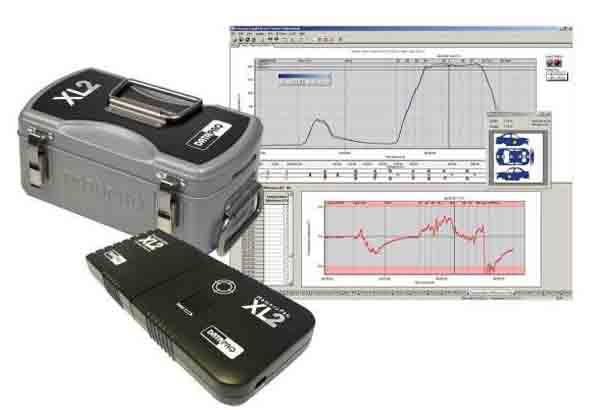

Datapaq® offers the Oven Tracker® XL2 System, the latest generation of Oven Tracker systems for robust, comprehensive, intelligent and easy-to-use oven temperature profiling.

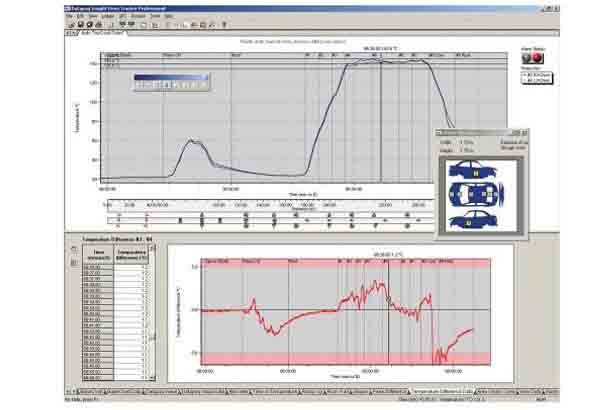

Insight Oven Tracker Thermal Profiling Software

Datapaq powerful Insight analysis software has been designed specifically to convert raw temperature data into meaningful information that can be used to understand, control and optimize your cure process. Complex calculations are simplified, allowing quick and comprehensive analysis. Detailed information of your oven gives you the reporting power you need in a detailed, certified and traceable profile report at the click of a button.

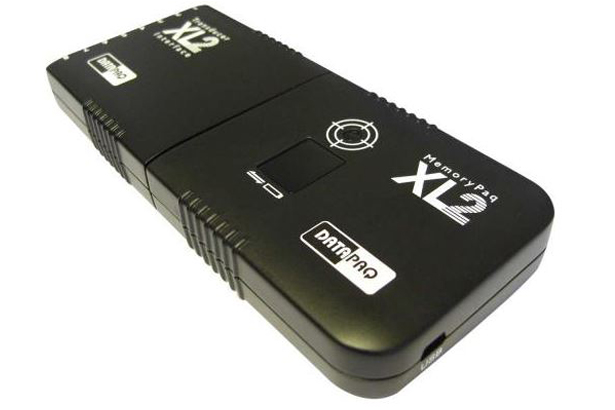

XL2 Temperature Data Logger

Routine oven profiling has never been quicker, easier or more efficient. Send the Datapaq XL2 system through the oven and discover the true potential of your finishing operation.

Simply 'plug & go'
Easy data download from the MemoryPaq
Full certification and traceability
Up to 16 measurement locations in a single run
New secure interlock logger case

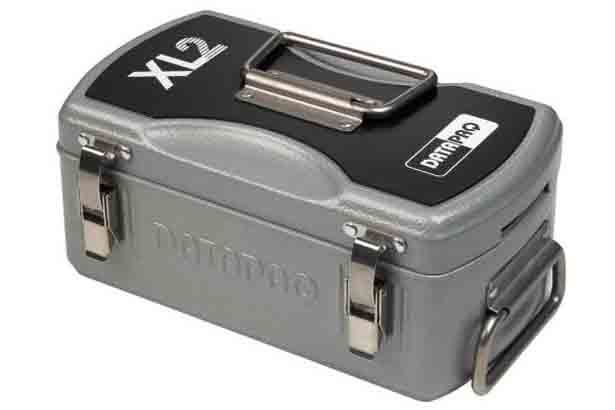

TB0090 Standard XL2 Thermal Barrier

The standard XL2 barrier, designed specifically for use on automotive paint lines, has a patented Silicone-free construction, eliminating the worry of contamination and paint finish defects, and helps provide the high quality you need. Weighing less than 4kg (9lbs) ensures easy, safe handling and transportation.

Datapaq also provides a range of thermal barriers to suit other process needs:

High temperature protection – PTFE/Dacromet cure
Long duration protection – aluminum aging; multiple ovens in single run (Ecoat, surfacer base etc.)
Waterproofing – dry off ovens
Low height clearance – two and three piece can manufacture
16 channel operation in single unit – automotive optimization studies

Thermocouples

Thermocouple probes are an essential part of a Datapaq Oven Tracker system. They are placed at critical points on the product to give a clear profile of the temperature throughout the process. All Datapaq probes conform to the highest standards (ANSI MC 96.1 Special Limits of Error) and provide the most accurate data possible. Improved probe cables make them durable and flexible. The quad-wrapped, 10 strand 36 AWG (0.125mm), PTFE and metal braid coated probe cables last significantly longer than previous designs.

The probe is further improved by a stronger 'crimped' plug/cable attachment and a circular cable cross section to reduce kinking and twisting. The green color of the cable conforms to the IEC584 color standard for Type K thermocouples
